Overview

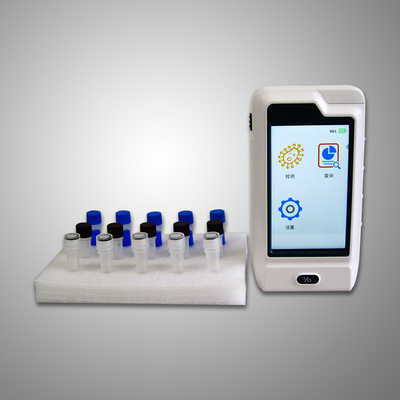

The HK-6053 Fuel Oil Microbial Detector complies with the requirements of test methods such as NB/SH/T 6053 and GJB 10680. It is suitable for determining the adenosine triphosphate (ATP) content of microorganisms in fuel, fuel/water mixtures, and fuel tank bottom water. ATP content is particularly important in fuel testing. The instrument uses a high-sensitivity photomultiplier tube to detect the bioluminescence generated by the test reagent, and calculates and analyzes the test results based on the intensity of the bioluminescence signal, enabling quick and easy acquisition of detection results.
Functional Features
- Equipped with a 4.3-inch capacitive touch screen and Android operating system for easy operation.
- The APP interface is simple, with clear operation logic, facilitating human-computer interaction.
- Uses a high-sensitivity photomultiplier tube for fluorescence intensity counting, ensuring high detection accuracy.
- Built-in 3.7V lithium battery pack with charging function and power-saving mode, which can automatically enter sleep or shut down.
- Automatically stores detection records, supporting retrieval by detection time and record statistics.
- Equipped with WIFI, Bluetooth, and USB data communication interfaces.
- Equipped with a detection chamber door sensor, test tube and swab detection sensors, and a gyroscope sensor. When the instrument is in detection mode, it can remind the user to avoid excessive tilt that affects the detection results.
- The instrument is small and lightweight, with fast detection speed; the average detection time for one sample is only 15 seconds.
Technical Parameters
- Dimensions: (L×W×H) not exceeding (180×50×100)mm
- Weight: Not exceeding 500g; small and lightweight, operable with one hand, suitable for on-site detection
- Display: Android operating system, equipped with a 4.3-inch capacitive touch screen for easy operation
- Detection Accuracy: 1×10⁻¹⁶mol/L (cleanliness)
- Detection Range: 0～9999999RLU/s
- Detector Type: Photomultiplier tube
- Counting Mode: Single photon
- Sensors: Built-in gyroscope sensor, chamber door switch sensor, swab loading sensor
- Detection Time: ≤1min
- Detection Protection: Built-in gyroscope sensor; when the instrument is in detection mode, it can remind the user to avoid excessive tilt that affects the detection results
- Storage Space: 5G
- Body Interface: USB-Mini
- Battery: 3.7V 4400Ah rechargeable lithium battery, complying with IEC 62133-2 safety standard
- Standby Time: Continuous standby for no less than 10 days; capable of continuously detecting 3000 samples
- Ambient Temperature: 5℃～40℃
