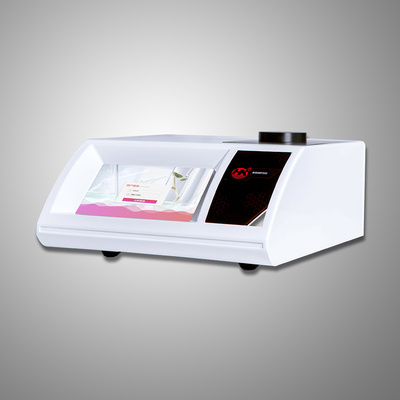

HK-R500 Automatic Refractometer

Overview

The HK-R500 Automatic Refractometer is equipped with a high-performance linear CCD photosensitive component. It adopts high-speed and high-precision signal acquisition and analysis technology, along with a semiconductor Peltier super temperature control system. It can efficiently and accurately measure the refractive index (nD) of various liquids—including transparent, translucent, dark-colored, and viscous liquids—and the mass fraction (Brix) of sugar solutions. This product is widely used in the petroleum industry, oil industry, pharmaceutical industry, food industry, daily chemical industry, sugar industry, etc. It is also a common equipment in schools and related scientific research institutions.

Functional Features

1. Built-in Peltier temperature control to improve accuracy and stability.
2. Dual temperature control and sapphire prism.
3. LED cold light source replaces traditional sodium lamps and halogen tungsten lamps.
4. Complies with 21CFR Part 11 audit trail, pharmacopoeia requirements, and supports electronic signature.
5. Supports network printing and data statistical retrieval.
6. Multi-level authority management with freely configurable permissions.
7. 7-inch color touch screen and user-friendly operation interface.

Technical Parameters

1. Power Supply: AC 110V～220V, 50Hz～60Hz
2. Range (Refractive Index): 1.30000～1.70000 (nD)
3. Resolution (Refractive Index): 0.00001 (nD)
4. Accuracy (Refractive Index): ±0.00001
5. Brix Range: 0-100% (Brix)
6. Resolution (Brix): 0.01% (Brix)
7. Brix Accuracy: ±0.03% (Brix)
8. Repeatability: ±0.03% (Brix)
9. Test Modes: Refractive index/Brix/honey moisture/salinity or custom
10. Temperature Control Method: Peltier temperature control
11. Temperature Control Range: 5℃～65℃
12. Temperature Control Stability: ±0.02℃
13. Light Source: LED light source
14. Wavelength: 589nm
15. Prism: Sapphire grade
16. Sample Cell: Hastelloy
17. Detection Method: High-resolution linear CCD
18. Display Method: 7-inch FTF color touch screen
19. Data Storage: 32G
20. Output Method: USB, RS232, RJ45, SD card, USB flash drive
21. User Management: Yes (four-level authority management)
22. Audit Trail: Yes
23. Electronic Signature: Yes
24. Custom Method Library: Yes
25. High-Level Protection MD5 for Exported File Verification: Yes
26. WIFI Printing: Yes
27. Multiple Export File Formats: PDF and Excel
28. Dimensions and Weight: (430×380×300)mm, 5kg
